Name: MG12100S-BN2MM
Brand: Littelfuse Inc.
SKU: MG12100S-BN2MM
Availability: InStock

REF: MG12100S-BN2MM Littelfuse Inc.

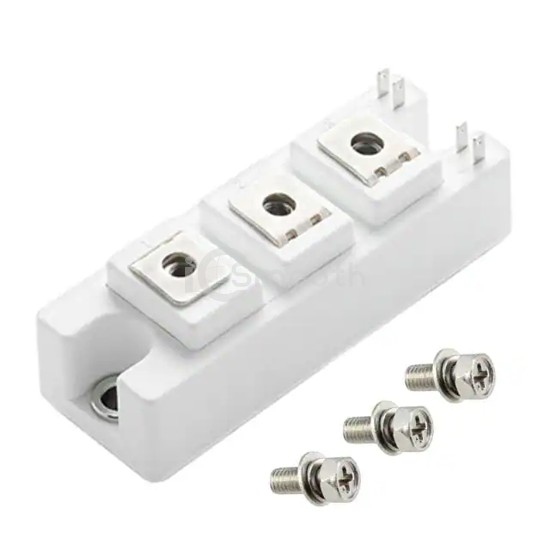

MG12100S-BN2MM

IGBT MODULE 1200V 140A 450W S3

MG12100S-BN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 140A 450W S3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case S-3 Module, current - collector (ic) (max) 140 A.

Datasheet Request a Quote

In Stock: 1,406

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	Trench Field Stop
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	140 A
Power - Max	450 W
Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	7.1 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	S-3 Module
Supplier Device Package	S3
