MG12100D-BA1MM

In Stock: 5,207
MG12100D-BA1MM - Littelfuse Inc. - Transistors - IGBTs - Modules
REF: MG12100D-BA1MM Littelfuse Inc.

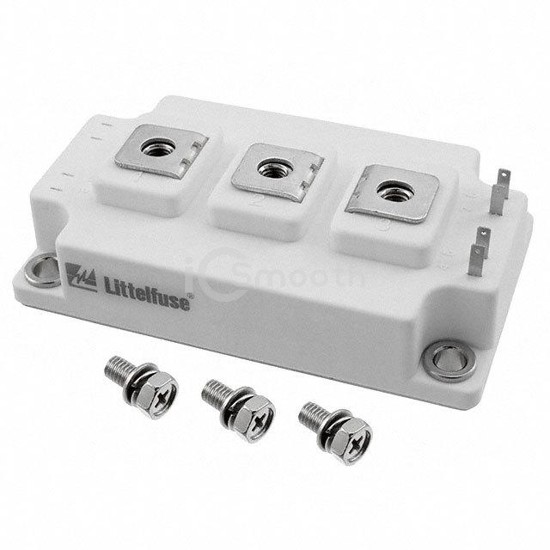

MG12100D-BA1MM

Littelfuse Inc.

IGBT MODULE 1200V 160A 1000W D3

MG12100D-BA1MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 160A 1000W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 160 A.

Datasheet Request a Quote

In Stock: 5,207

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)160 A
Power - Max1000 W
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce8.58 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageD3
