Name: MG06600WB-BN4MM
Brand: Littelfuse Inc.
SKU: MG06600WB-BN4MM
Availability: InStock

REF: MG06600WB-BN4MM Littelfuse Inc.

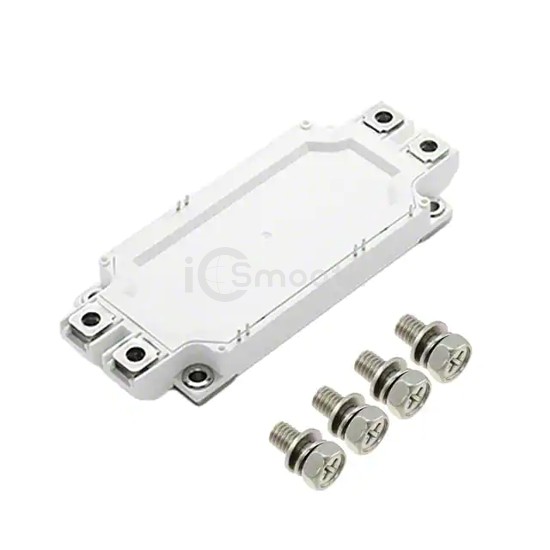

MG06600WB-BN4MM

IGBT MOD 600V 600A 1500W

MG06600WB-BN4MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MOD 600V 600A 1500W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 700 A.

Datasheet Request a Quote

In Stock: 3,117

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	700 A
Power - Max	1500 W
Vce(on) (Max) @ Vge, Ic	1.45V @ 15V, 600A (Typ)
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	39 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
