MG06400D-BN1MM

In Stock: 1,305

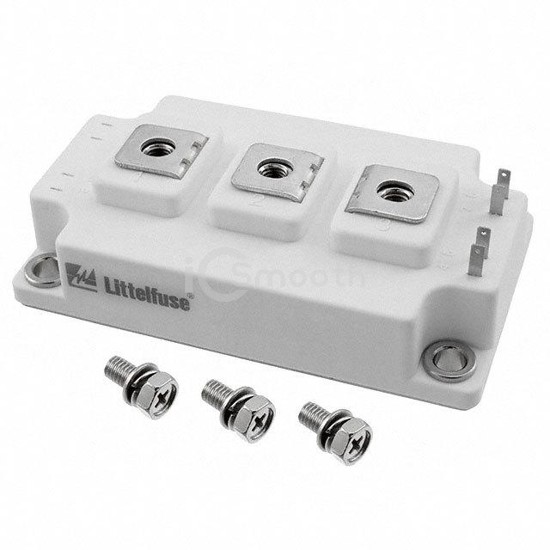

MG06400D-BN1MM - Littelfuse Inc. - Transistors - IGBTs - Modules
REF: MG06400D-BN1MM Littelfuse Inc.
MG06400D-BN1MM

Littelfuse Inc.

IGBT MODULE 600V 460A 1400W D3

MG06400D-BN1MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 600V 460A 1400W D3. Key specifications: mounting type Chassis Mount, package / case D-3 Module, current - collector (ic) (max) 460 A, power - max 1400 W.

Request a Quote

In Stock: 1,305

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)460 A
Power - Max1400 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 400A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce18 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
