Name: MG06300D-BN4MM
Brand: Littelfuse Inc.
SKU: MG06300D-BN4MM
Availability: InStock

REF: MG06300D-BN4MM Littelfuse Inc.

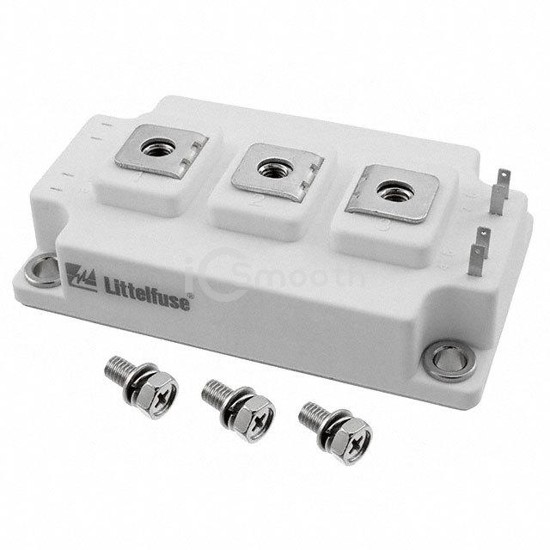

MG06300D-BN4MM

IGBT MODULE 600V 300A 940W D3

MG06300D-BN4MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 600V 300A 940W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 400 A.

Datasheet Request a Quote

In Stock: 9,595

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	400 A
Power - Max	940 W
Vce(on) (Max) @ Vge, Ic	1.45V @ 15V, 300A (Typ)
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	19 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	D3
