Name: MG06100S-BR1MM
Brand: Littelfuse Inc.
SKU: MG06100S-BR1MM
Availability: InStock

REF: MG06100S-BR1MM Littelfuse Inc.

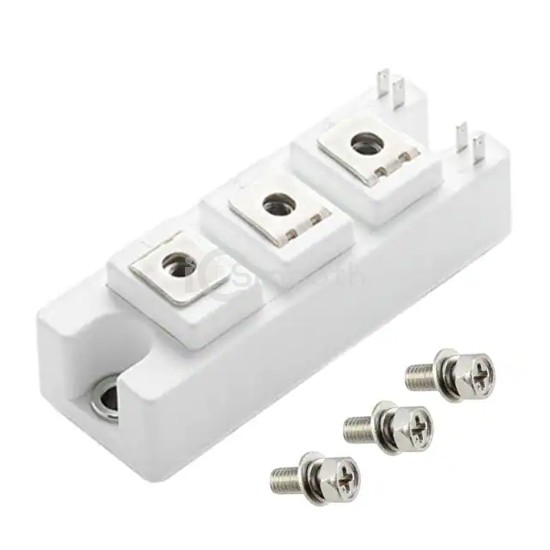

MG06100S-BR1MM

IGBT MODULE 600V 150A 625W S3

MG06100S-BR1MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 600V 150A 625W S3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case S-3 Module, current - collector (ic) (max) 150 A.

Datasheet Request a Quote

In Stock: 7,400

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	150 A
Power - Max	625 W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max)	500 µA

Input Capacitance (Cies) @ Vce	5.3 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	S-3 Module
Supplier Device Package	S3
