Name: MAC4DLM-1G
Brand: Littelfuse Inc.
SKU: MAC4DLM-1G
Price: 2.28 USD
Availability: InStock

REF: MAC4DLM-1G Littelfuse Inc.

MAC4DLM-1G

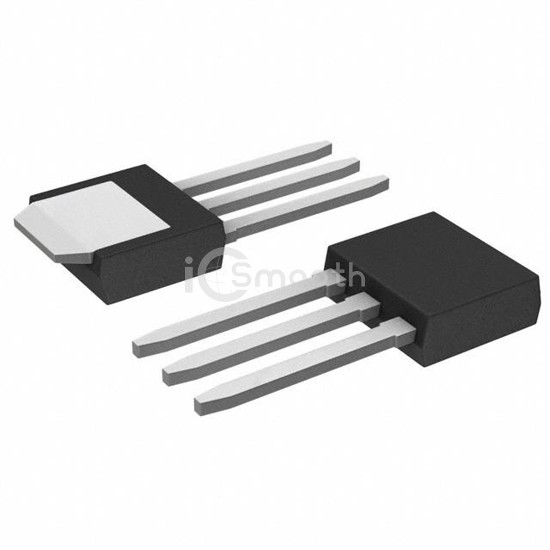

TRIAC SENS GATE 600V 4A IPAK

MAC4DLM-1G is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC SENS GATE 600V 4A IPAK. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 3,980

Tiered Pricing USD

1+ $2.2800 —

10+ $1.4690 -36%

100+ $1.0057 -56%

500+ $0.8073 -65%

1,000+ $0.7436 -67%

4,000+ $0.7276 -68% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Logic - Sensitive Gate
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	40A @ 60Hz
Current - Gate Trigger (Igt) (Max)	3 mA

Current - Hold (Ih) (Max)	15 mA
Configuration	Single
Operating Temperature	-40°C ~ 110°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	TO-251-3L POD
