Name: LTKAK6-076C-TP
Brand: Littelfuse Inc.
SKU: LTKAK6-076C-TP
Price: 30.48 USD
Availability: InStock

REF: LTKAK6-076C-TP Littelfuse Inc.

LTKAK6-076C-TP

Littelfuse Inc.

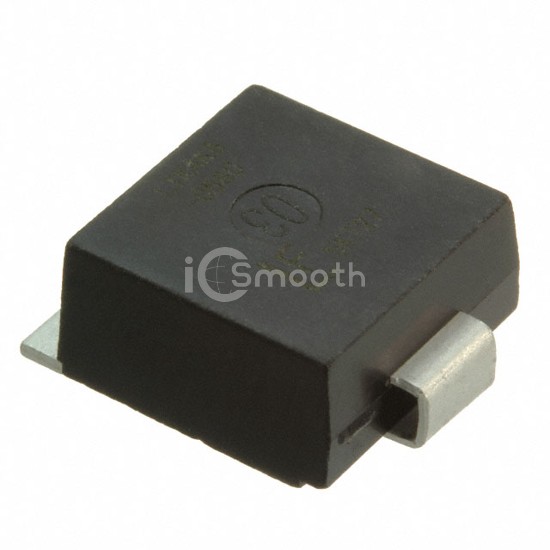

TVS DIODE 76VWM 140VC SMTO-218

LTKAK6-076C-TP is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 76VWM 140VC SMTO-218. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case Nonstandard SMD.

Datasheet Request a Quote

In Stock: 47

Tiered Pricing USD

1+ $30.4800 —

10+ $22.5190 -26%

100+ $21.9910 -28% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	76V
Voltage - Breakdown (Min)	85V
Voltage - Clamping (Max) @ Ipp	140V
Current - Peak Pulse (10/1000µs)	6000A (6kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	4500pF @ 10kHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	Nonstandard SMD
Supplier Device Package	SMTO-218 Tab
