Name: L6008V8TP
Brand: Littelfuse Inc.
SKU: L6008V8TP
Price: 2.52 USD
Availability: InStock

REF: L6008V8TP Littelfuse Inc.

L6008V8TP

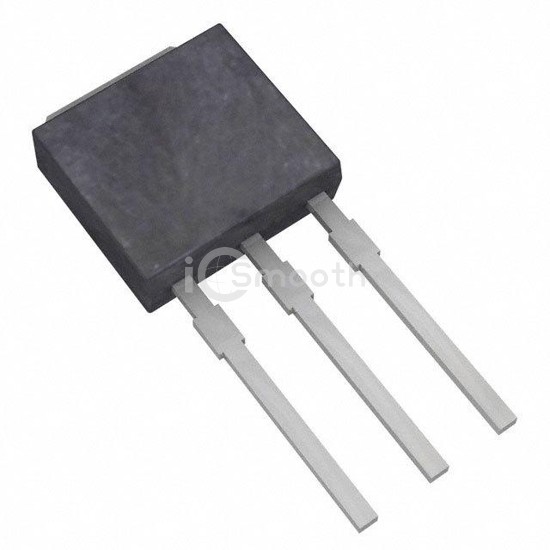

TRIAC SENS GATE 600V 8A TO251

L6008V8TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC SENS GATE 600V 8A TO251. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 750

Tiered Pricing USD

1+ $2.5200 —

10+ $1.6320 -35%

100+ $1.1236 -55%

750+ $0.8637 -66%

1,500+ $0.8355 -67% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Logic - Sensitive Gate
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	8 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	65A, 85A
Current - Gate Trigger (Igt) (Max)	10 mA

Current - Hold (Ih) (Max)	20 mA
Configuration	Single
Operating Temperature	-40°C ~ 110°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	TO-251 (V-Pak/I-Pak)
