Name: L6006L5TP
Brand: Littelfuse Inc.
SKU: L6006L5TP
Price: 3.25 USD
Availability: InStock

REF: L6006L5TP Littelfuse Inc.

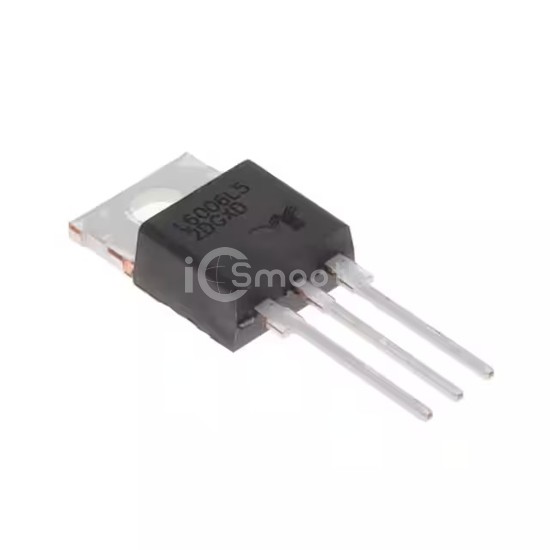

L6006L5TP

SEN TRIAC 600V 6A 5-5-5-5 MA TO2

L6006L5TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. SEN TRIAC 600V 6A 5-5-5-5 MA TO2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C (TJ), package / case TO-220-3 Full Pack, Isolated Tab.

Datasheet Request a Quote

In Stock: 1,731

Tiered Pricing USD

1+ $3.2500 —

10+ $2.1250 -35%

100+ $1.4842 -54%

500+ $1.2108 -63%

1,000+ $1.1790 -64% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Logic - Sensitive Gate
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	6 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	50A, 60A
Current - Gate Trigger (Igt) (Max)	5 mA

Current - Hold (Ih) (Max)	10 mA
Configuration	Single
Operating Temperature	-40°C ~ 110°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	ITO-220AB
