Name: AK6-380C
Brand: Littelfuse Inc.
SKU: AK6-380C
Price: 73.44 USD
Availability: InStock

REF: AK6-380C Littelfuse Inc.

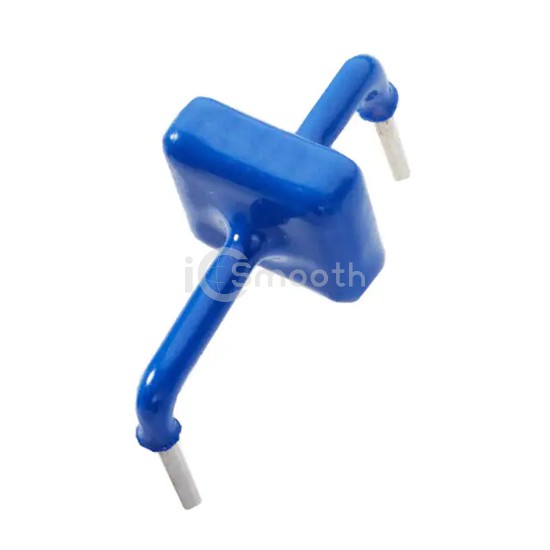

AK6-380C

TVS DIODE 380VWM 520VC AXIAL

AK6-380C is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 380VWM 520VC AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), package / case Axial, Right Angle Bend (24.15mm Center).

Datasheet Request a Quote

In Stock: 565

Tiered Pricing USD

1+ $73.4400 —

56+ $65.6250 -11% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	380V
Voltage - Breakdown (Min)	401V
Voltage - Clamping (Max) @ Ipp	520V
Current - Peak Pulse (10/1000µs)	6000A (6kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	1400pF @ 10kHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	Axial
