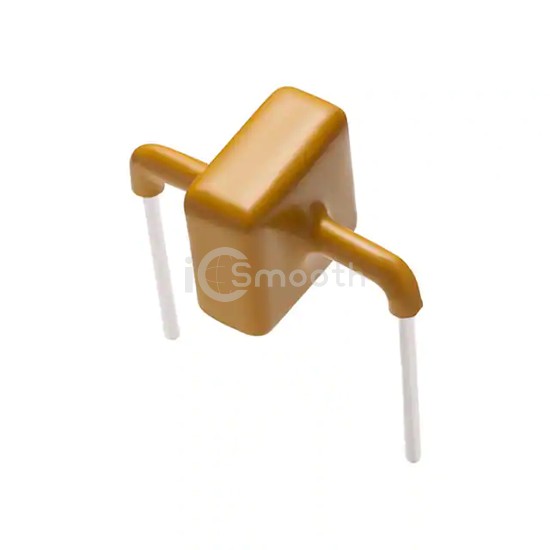

Name: AK3-208C-Y
Brand: Littelfuse Inc.
SKU: AK3-208C-Y
Price: 42.06 USD
Availability: InStock

REF: AK3-208C-Y Littelfuse Inc.

AK3-208C-Y

TVS DIODE 208VWM 306VC AXIAL

AK3-208C-Y is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 208VWM 306VC AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), package / case Axial, Right Angle Bend (24.15mm Center).

Datasheet Request a Quote

In Stock: 56

Tiered Pricing USD

1+ $42.0600 —

56+ $36.7500 -13% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	208V
Voltage - Breakdown (Min)	223V
Voltage - Clamping (Max) @ Ipp	306V
Current - Peak Pulse (10/1000µs)	3000A (3kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	2400pF @ 10kHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	Axial
