Name: AK3-058C
Brand: Littelfuse Inc.
SKU: AK3-058C
Price: 21.81 USD
Availability: InStock

REF: AK3-058C Littelfuse Inc.

AK3-058C

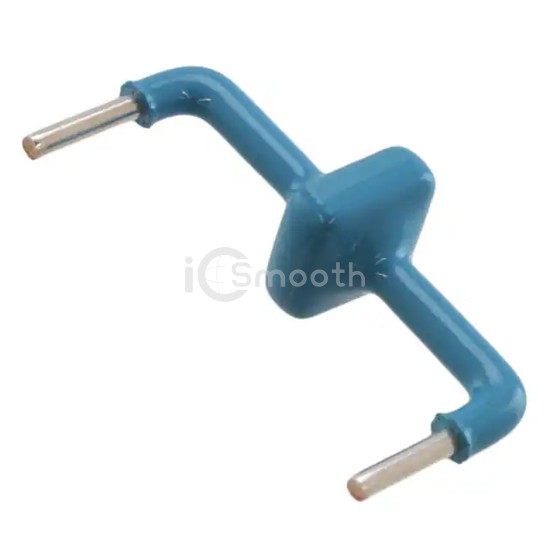

TVS DIODE 58VWM 110VC AXIAL

AK3-058C is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 58VWM 110VC AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), package / case Axial, Right Angle Bend (24.15mm Center).

Datasheet Request a Quote

In Stock: 7,974

Tiered Pricing USD

1+ $21.8100 —

56+ $16.8511 -23%

112+ $15.4350 -29% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	58V
Voltage - Breakdown (Min)	64V
Voltage - Clamping (Max) @ Ipp	110V
Current - Peak Pulse (10/1000µs)	3000A (3kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	6000pF @ 10kHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	Axial
