Name: AK20-058C-Y
Brand: Littelfuse Inc.
SKU: AK20-058C-Y
Price: 39.32 USD
Availability: InStock

REF: AK20-058C-Y Littelfuse Inc.

AK20-058C-Y

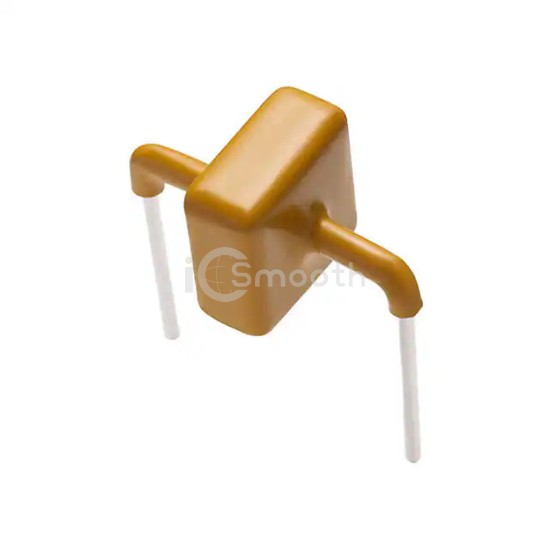

TVS DIODE 58VWM 120VC AXIAL

AK20-058C-Y is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 58VWM 120VC AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), package / case Axial, Right Angle Bend (24.15mm Center).

Request a Quote

In Stock: 47

Tiered Pricing USD

1+ $39.3200 —

56+ $33.8100 -14% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	58V
Voltage - Breakdown (Min)	64V
Voltage - Clamping (Max) @ Ipp	120V
Current - Peak Pulse (10/1000µs)	20000A 20kA (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	12000pF @ 10kHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	Axial
