Name: AK15-076C-Y
Brand: Littelfuse Inc.
SKU: AK15-076C-Y
Price: 37.93 USD
Availability: InStock

REF: AK15-076C-Y Littelfuse Inc.

AK15-076C-Y

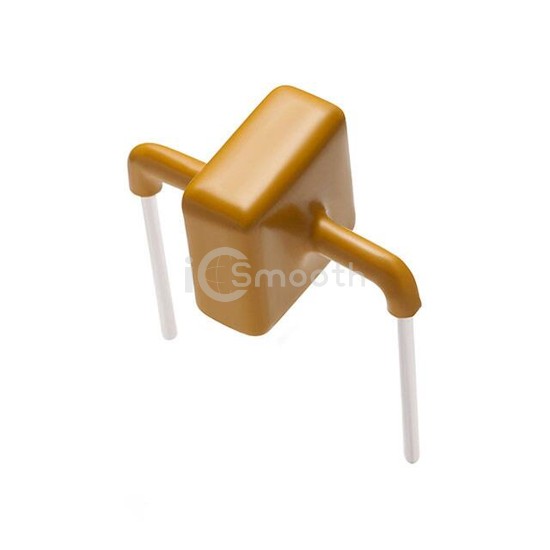

TVS DIODE 76VWM 150VC AXIAL

AK15-076C-Y is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 76VWM 150VC AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), package / case Axial, Right Angle Bend (24.15mm Center).

Datasheet Request a Quote

In Stock: 46

Tiered Pricing USD

1+ $37.9300 —

56+ $32.3400 -15% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	76V
Voltage - Breakdown (Min)	85V
Voltage - Clamping (Max) @ Ipp	150V
Current - Peak Pulse (10/1000µs)	15000A (15kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	10000pF @ 10kHz (Max)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	Axial
