Name: 1KSMB56A
Brand: Littelfuse Inc.
SKU: 1KSMB56A
Price: 0.31 USD
Availability: InStock

REF: 1KSMB56A Littelfuse Inc.

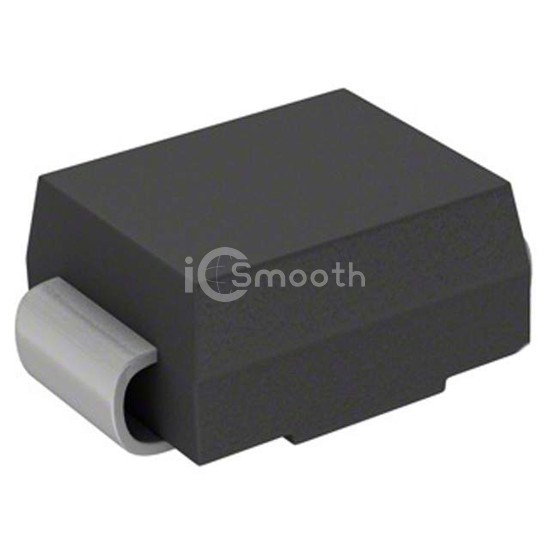

1KSMB56A

TVS DIODE 47.8VWM 77VC DO214AA

1KSMB56A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 47.8VWM 77VC DO214AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 1,411

Tiered Pricing USD

1+ $0.3100 —

10+ $0.2900 -6%

100+ $0.2700 -13%

500+ $0.2620 -15%

1,000+ $0.2390 -23% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	47.8V
Voltage - Breakdown (Min)	53.2V
Voltage - Clamping (Max) @ Ipp	77V
Current - Peak Pulse (10/1000µs)	13A

Power - Peak Pulse	1000W (1kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMBJ)
