TVS DIODE 12.8VWM 22.26VC DO214

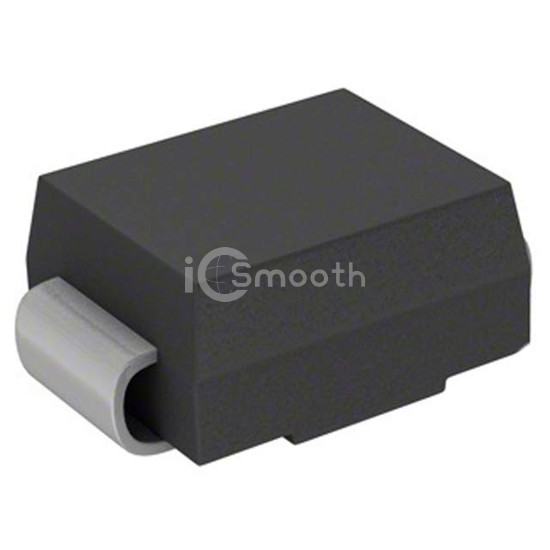

1KSMB15 is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 12.8VWM 22.26VC DO214. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.
In Stock: 8,268
| Product Status | Obsolete |
|---|---|
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12.8V |
| Voltage - Breakdown (Min) | 13.55V |
| Voltage - Clamping (Max) @ Ipp | 22.26V |
| Current - Peak Pulse (10/1000µs) | 47.2A |
| Power - Peak Pulse | 1000W (1kW) |
|---|---|
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
