Name: MOC3063
Brand: Lite-On Inc.
SKU: MOC3063
Price: 0.57 USD
Availability: InStock

REF: MOC3063 Lite-On Inc.

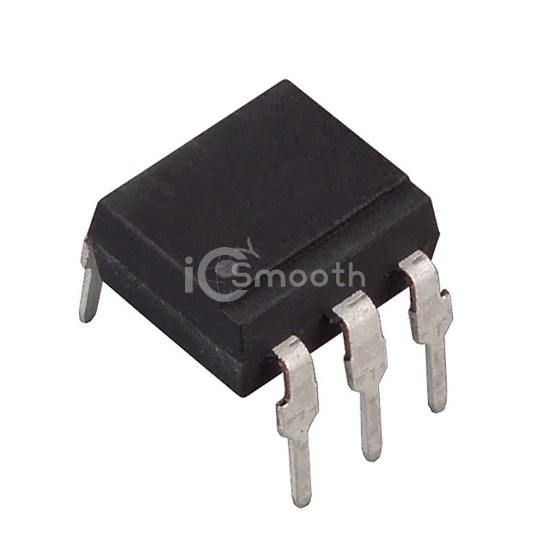

MOC3063

OPTOISOLATOR 5KV TRIAC 6DIP

MOC3063 is a Optoisolators - Triac, SCR Output manufactured by Lite-On Inc.. OPTOISOLATOR 5KV TRIAC 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 50,918

Tiered Pricing USD

1+ $0.5700 —

25+ $0.3444 -40%

100+ $0.2850 -50%

500+ $0.2355 -59%

1,000+ $0.2193 -62%

2,000+ $0.2054 -64%

5,000+ $0.1903 -67%

10,000+ $0.1809 -68%

25,000+ $0.1706 -70% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	Yes
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	600 V
Static dV/dt (Min)	1kV/µs
Current - LED Trigger (Ift) (Max)	5mA
Current - On State (It (RMS)) (Max)	-

Current - Hold (Ih)	400µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Approval Agency	CSA, FIMKO, UL
