Name: MOC3052
Brand: Lite-On Inc.
SKU: MOC3052
Price: 0.78 USD
Availability: InStock

REF: MOC3052 Lite-On Inc.

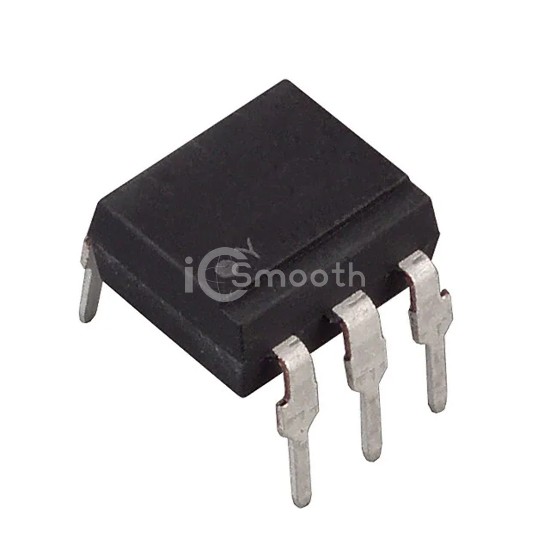

MOC3052

OPTOISOLATOR 5KV TRIAC 6DIP

MOC3052 is a Optoisolators - Triac, SCR Output manufactured by Lite-On Inc.. OPTOISOLATOR 5KV TRIAC 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 14,899

Tiered Pricing USD

1+ $0.7800 —

65+ $0.4189 -46%

130+ $0.3845 -51%

520+ $0.3302 -58%

1,040+ $0.3090 -60%

2,015+ $0.2917 -63%

5,005+ $0.2720 -65%

10,010+ $0.2596 -67%

25,025+ $0.2461 -68% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	600 V
Static dV/dt (Min)	1kV/µs
Current - LED Trigger (Ift) (Max)	10mA
Current - On State (It (RMS)) (Max)	-

Current - Hold (Ih)	400µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Approval Agency	CSA, FIMKO, UL
