MOC3020S-TA

In Stock: 3,156

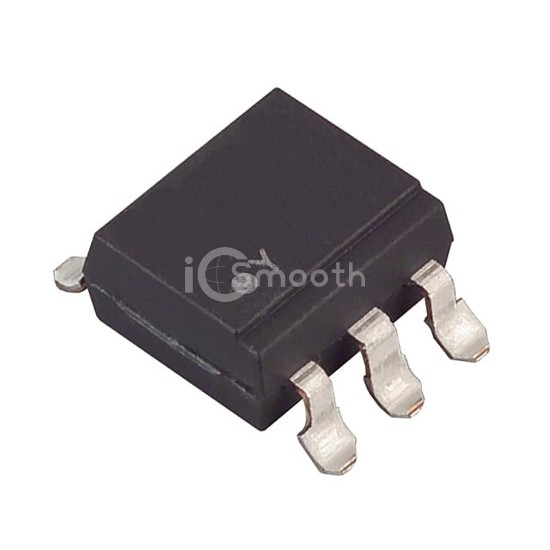

MOC3020S-TA - Lite-On Inc. - Optoisolators - Triac, SCR Output
REF: MOC3020S-TA Lite-On Inc.
MOC3020S-TA

Lite-On Inc.

OPTOISOLATOR 5KV TRIAC 6SMD

MOC3020S-TA is a Optoisolators - Triac, SCR Output manufactured by Lite-On Inc.. OPTOISOLATOR 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,156

Tiered Pricing USD
1+ $0.6400 —
10+ $0.4400 -31%
100+ $0.3188 -50%
500+ $0.2644 -59% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State400 V
Static dV/dt (Min)1kV/µs
Current - LED Trigger (Ift) (Max)30mA
Current - On State (It (RMS)) (Max)-
Current - Hold (Ih)250µA (Typ)
Turn On Time-
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
Approval AgencyCQC, CSA, TUV, UL, VDE
