Name: LTV-844
Brand: Lite-On Inc.
SKU: LTV-844
Price: 1.09 USD
Availability: InStock

REF: LTV-844 Lite-On Inc.

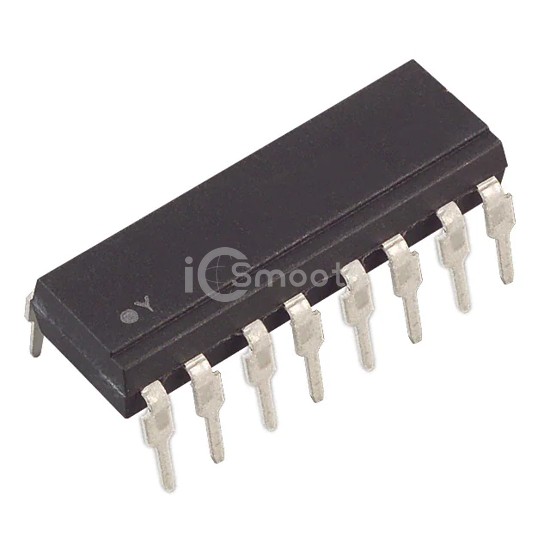

LTV-844

OPTOISOLTR 5KV 4CH TRANS 16-DIP

LTV-844 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISOLTR 5KV 4CH TRANS 16-DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 22,181

Tiered Pricing USD

1+ $1.0900 —

25+ $0.6720 -38%

100+ $0.5655 -48%

500+ $0.4778 -56%

1,000+ $0.4491 -59%

2,000+ $0.4248 -61%

5,000+ $0.3982 -63%

10,000+ $0.3816 -65%

25,000+ $0.3636 -67% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	300% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-DIP
