Name: LTV-816M
Brand: Lite-On Inc.
SKU: LTV-816M
Price: 0.11 USD
Availability: InStock

REF: LTV-816M Lite-On Inc.

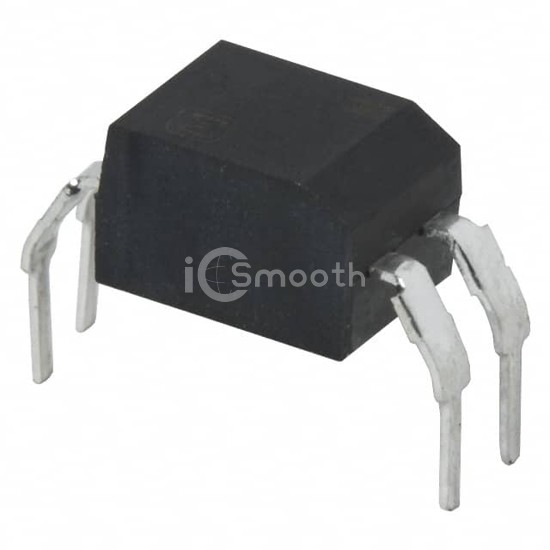

LTV-816M

OPTOISOLATR 5KV TRANSISTOR 4-DIP

LTV-816M is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISOLATR 5KV TRANSISTOR 4-DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 8,358

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 110°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
