Name: LTV-815S
Brand: Lite-On Inc.
SKU: LTV-815S
Price: 0.44 USD
Availability: InStock

REF: LTV-815S Lite-On Inc.

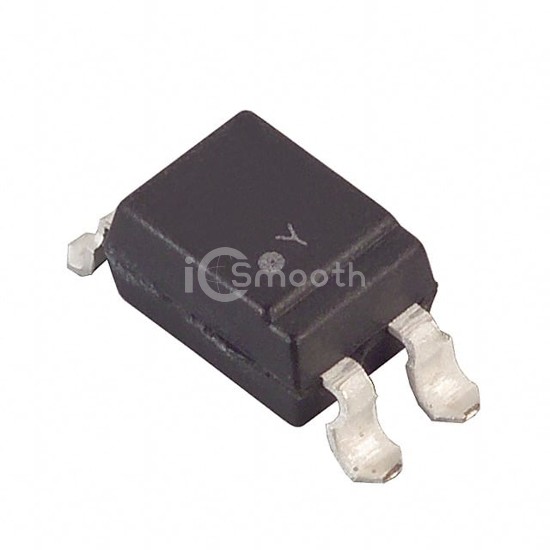

LTV-815S

OPTOISOLTR 5KV DARLINGTON 4-SMD

LTV-815S is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISOLTR 5KV DARLINGTON 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 20,795

Tiered Pricing USD

1+ $0.4400 —

10+ $0.3040 -31%

100+ $0.2169 -51%

500+ $0.1777 -60%

1,000+ $0.1648 -63%

2,000+ $0.1538 -65%

5,000+ $0.1418 -68%

10,000+ $0.1342 -69%

25,000+ $0.1260 -71% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	7500% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	60µs, 53µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	35V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
