Name: LTV-814S
Brand: Lite-On Inc.
SKU: LTV-814S
Price: 0.48 USD
Availability: InStock

REF: LTV-814S Lite-On Inc.

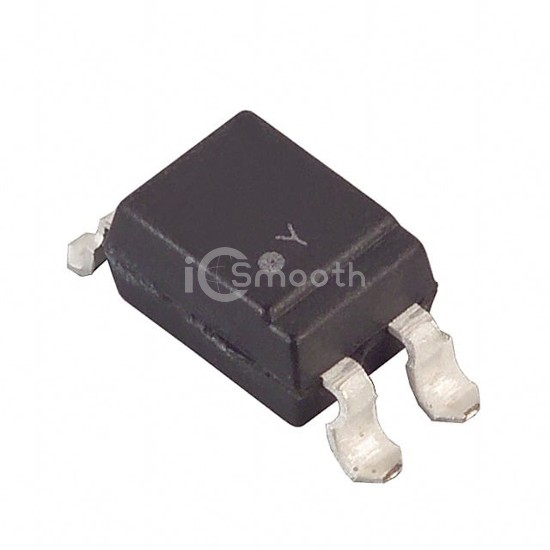

LTV-814S

OPTOISOLATR 5KV TRANSISTOR 4-SMD

LTV-814S is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISOLATR 5KV TRANSISTOR 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 115,194

Tiered Pricing USD

1+ $0.4800 —

10+ $0.3290 -31%

100+ $0.2359 -51%

500+ $0.1938 -60%

1,000+ $0.1799 -63%

2,000+ $0.1681 -65%

5,000+ $0.1552 -68%

10,000+ $0.1472 -69%

25,000+ $0.1384 -71% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	300% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
