Name: LTV-8141S
Brand: Lite-On Inc.
SKU: LTV-8141S
Price: 0.75 USD
Availability: InStock

REF: LTV-8141S Lite-On Inc.

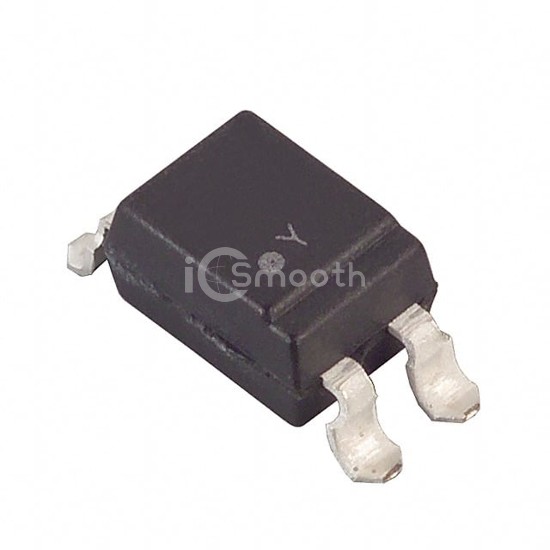

LTV-8141S

OPTOISOLTR 5KV DARLINGTON 4-SMD

LTV-8141S is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISOLTR 5KV DARLINGTON 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 22,870

Tiered Pricing USD

1+ $0.7500 —

10+ $0.5210 -31%

100+ $0.3797 -49%

500+ $0.3167 -58%

1,000+ $0.2961 -61%

2,000+ $0.2785 -63%

5,000+ $0.2593 -65%

10,000+ $0.2474 -67%

25,000+ $0.2343 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	7500% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	60µs, 53µs
Input Type	AC, DC
Output Type	Darlington

Voltage - Output (Max)	35V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
