Name: LTV-206
Brand: Lite-On Inc.
SKU: LTV-206
Price: 1.14 USD
Availability: InStock

REF: LTV-206 Lite-On Inc.

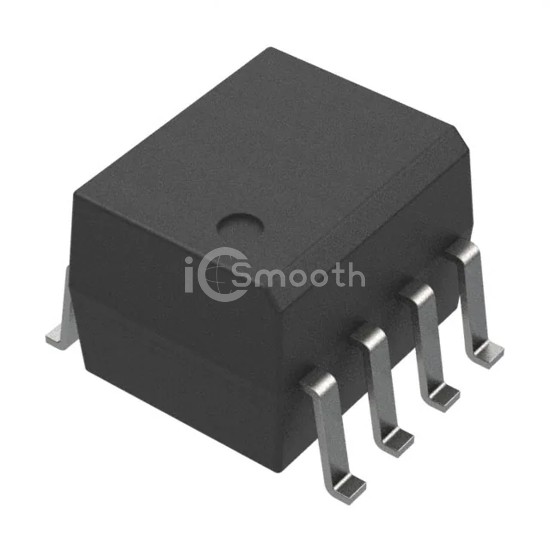

LTV-206

OPTOISO 3.75KV 2CH TRANS 8-SOP

LTV-206 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISO 3.75KV 2CH TRANS 8-SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,234

Tiered Pricing USD

1+ $1.1400 —

10+ $0.8030 -30%

100+ $0.5970 -48%

500+ $0.5053 -56%

1,000+ $0.4753 -58% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	63% @ 10mA
Current Transfer Ratio (Max)	125% @ 10mA
Turn On / Turn Off Time (Typ)	5µs, 4µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
