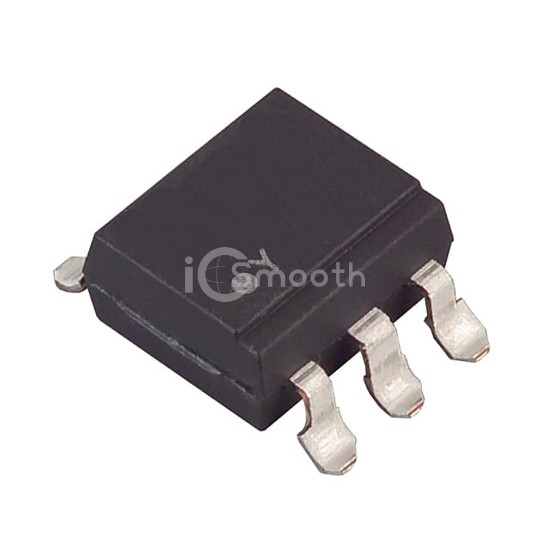

H11D1S

OPTOISO 5KV TRANS W/BASE 6SMD

H11D1S is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISO 5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 11,579

Tiered Pricing USD

1+ $0.8700 —

65+ $0.4675 -46%

130+ $0.4298 -51%

520+ $0.3703 -57%

1,040+ $0.3470 -60%

2,015+ $0.3280 -62%

5,005+ $0.3064 -65%

10,010+ $0.2928 -66%

25,025+ $0.2780 -68% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 5µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	300V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
