Name: H11A1S
Brand: Lite-On Inc.
SKU: H11A1S
Availability: InStock

REF: H11A1S Lite-On Inc.

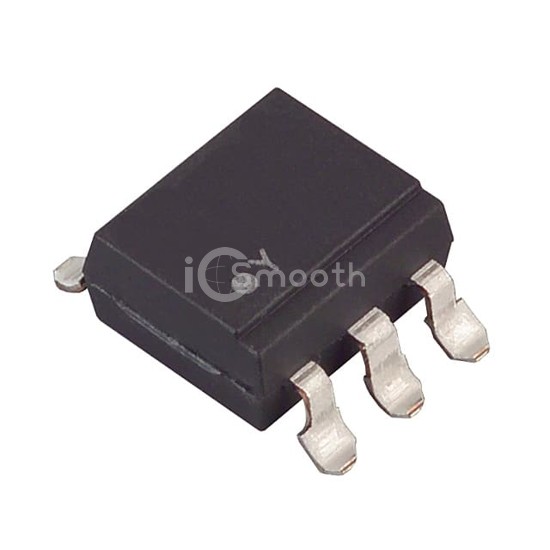

H11A1S

OPTOISO 5KV TRANS W/BASE 6SMD

H11A1S is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISO 5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,846

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	2.8µs, 4.5µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
