Name: CNY17F-3
Brand: Lite-On Inc.
SKU: CNY17F-3
Price: 0.41 USD
Availability: InStock

REF: CNY17F-3 Lite-On Inc.

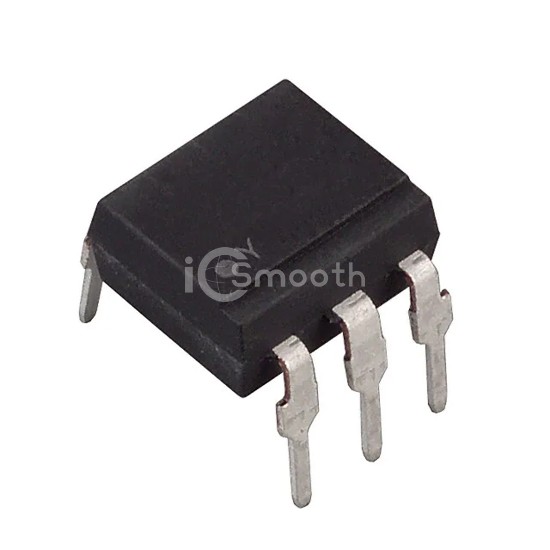

CNY17F-3

OPTOISOLTR 5KV TRANSISTOR 6-DIP

CNY17F-3 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISOLTR 5KV TRANSISTOR 6-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 43,625

Tiered Pricing USD

1+ $0.4100 —

65+ $0.2126 -48%

130+ $0.1935 -53%

520+ $0.1631 -60%

1,040+ $0.1511 -63%

2,015+ $0.1413 -66%

5,005+ $0.1302 -68%

10,010+ $0.1232 -70%

25,025+ $0.1155 -72% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	5µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
