Name: CNY17-3S-TA1
Brand: Lite-On Inc.
SKU: CNY17-3S-TA1
Price: 0.46 USD
Availability: InStock

REF: CNY17-3S-TA1 Lite-On Inc.

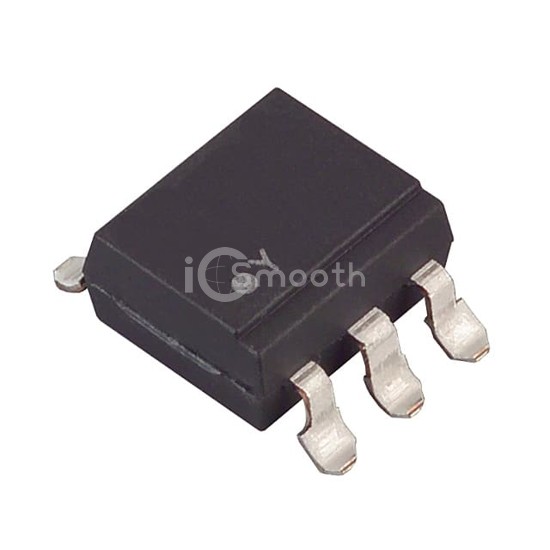

CNY17-3S-TA1

OPTOISO 5KV TRANS W/BASE 6SMD

CNY17-3S-TA1 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISO 5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,441

Tiered Pricing USD

1+ $0.4600 —

10+ $0.3140 -32%

100+ $0.2245 -51%

500+ $0.1841 -60% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	5µs, 5µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	70V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
