Name: 4N37
Brand: Lite-On Inc.
SKU: 4N37
Price: 0.39 USD
Availability: InStock

REF: 4N37 Lite-On Inc.

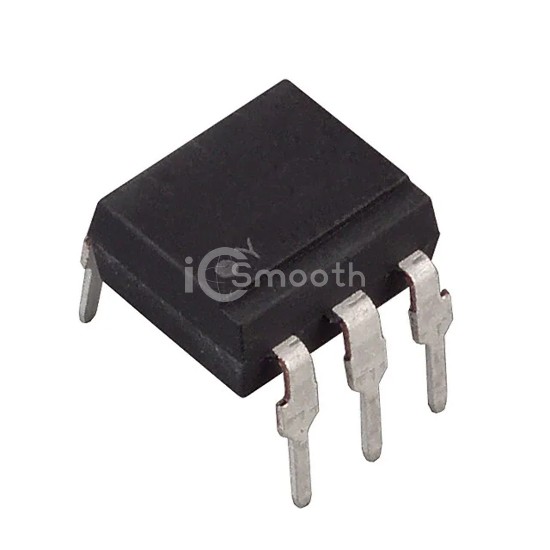

4N37

OPTOISO 1.5KV TRANS W/BASE 6DIP

4N37 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lite-On Inc.. OPTOISO 1.5KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,688

Tiered Pricing USD

1+ $0.3900 —

65+ $0.2009 -48%

130+ $0.1827 -53%

520+ $0.1537 -61%

1,040+ $0.1423 -64%

2,015+ $0.1331 -66%

5,005+ $0.1224 -69%

10,010+ $0.1157 -70%

25,025+ $0.1084 -72% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	1500Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 3µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
