LTC4440EMS8E-5

In Stock: 2,498

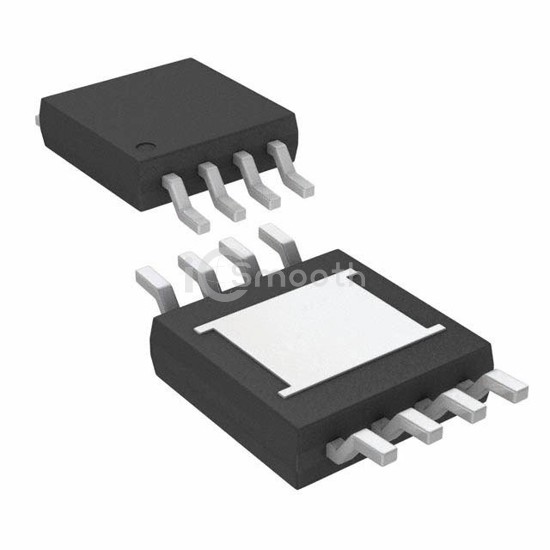

LTC4440EMS8E-5 - Linear Technology - PMIC - Gate Drivers
REF: LTC4440EMS8E-5 Linear Technology
LTC4440EMS8E-5

Linear Technology

LTC4440 - HIGH SPEED, HIGH VOLTA

LTC4440EMS8E-5 is a PMIC - Gate Drivers manufactured by Linear Technology. LTC4440 - HIGH SPEED, HIGH VOLTA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4V ~ 15V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 2,498

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel MOSFET
Voltage - Supply4V ~ 15V
Logic Voltage - VIL, VIH1.6V, 1.2V
Current - Peak Output (Source, Sink)1.1A, 1.1A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)80 V
Rise / Fall Time (Typ)100ns, 70ns
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package8-MSOP-EP
