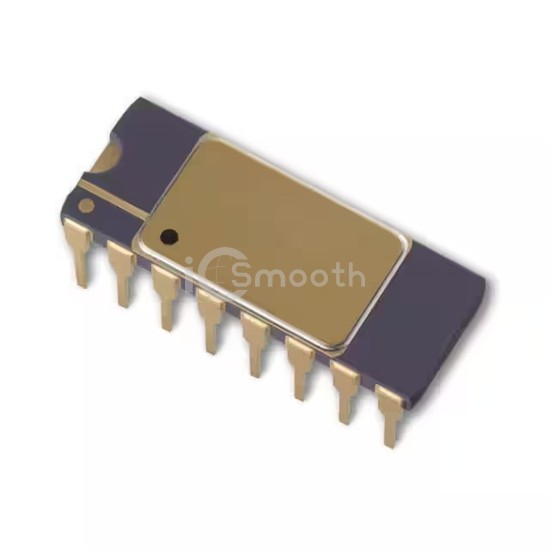

SD5000I S/B DIP 16L

In Stock: 324
SD5000I S/B DIP 16L - Linear Integrated Systems, Inc. - Transistors - JFETs
REF: SD5000I S/B DIP 16L Linear Integrated Systems, Inc.
SD5000I S/B DIP 16L

Linear Integrated Systems, Inc.

QUAD HIGH SPEED N-CHANNEL LATERA

SD5000I S/B DIP 16L is a Transistors - JFETs manufactured by Linear Integrated Systems, Inc.. QUAD HIGH SPEED N-CHANNEL LATERA. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case 16-DIP (0.300", 7.62mm), power - max 500 mW.

Datasheet Request a Quote

In Stock: 324

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel
Voltage - Breakdown (V(BR)GSS)20 V
Drain to Source Voltage (Vdss)20 V
Current - Drain (Idss) @ Vds (Vgs=0)900 pA @ 20 V
Current Drain (Id) - Max50 mA
Voltage - Cutoff (VGS off) @ Id-
Input Capacitance (Ciss) (Max) @ Vds-
Resistance - RDS(On)70 Ohms
Power - Max500 mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-DIP
