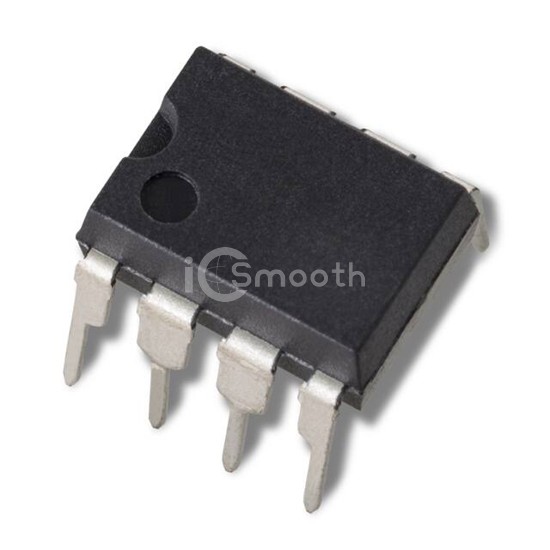

Name: LS350 DIP 8L
Brand: Linear Integrated Systems, Inc.
SKU: LS350 DIP 8L
Price: 5.56 USD
Availability: InStock

REF: LS350 DIP 8L Linear Integrated Systems, Inc.

LS350 DIP 8L

Linear Integrated Systems, Inc.

TIGHTLY MATCHED, MONOLITHIC DUAL

LS350 DIP 8L is a Transistors - Bipolar (BJT) - Arrays manufactured by Linear Integrated Systems, Inc.. TIGHTLY MATCHED, MONOLITHIC DUAL. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), current - collector (ic) (max) 10mA.

Datasheet Request a Quote

In Stock: 100

Specifications

13 parameters

Product Status	Active
Transistor Type	2 PNP (Dual)
Current - Collector (Ic) (Max)	10mA
Voltage - Collector Emitter Breakdown (Max)	25V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100µA, 1mA
Current - Collector Cutoff (Max)	200pA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1mA, 5V

Power - Max	500mW
Frequency - Transition	200MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
