Name: IT124 TO-78 6L
Brand: Linear Integrated Systems, Inc.
SKU: IT124 TO-78 6L
Price: 10.49 USD
Availability: InStock

REF: IT124 TO-78 6L Linear Integrated Systems, Inc.

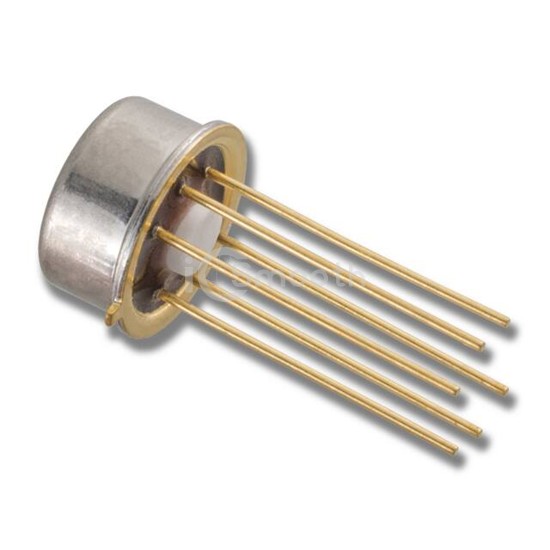

IT124 TO-78 6L

Linear Integrated Systems, Inc.

HIGH VOLTAGE, SUPER BETA, MONOLI

IT124 TO-78 6L is a Transistors - Bipolar (BJT) - Arrays manufactured by Linear Integrated Systems, Inc.. HIGH VOLTAGE, SUPER BETA, MONOLI. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-78-6 Metal Can, current - collector (ic) (max) 10mA.

Datasheet Request a Quote

In Stock: 10

Specifications

13 parameters

Product Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	10mA
Voltage - Collector Emitter Breakdown (Max)	2V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100µA, 1mA
Current - Collector Cutoff (Max)	100pA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	1500 @ 10µA, 1V

Power - Max	500mW
Frequency - Transition	100MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-78-6 Metal Can
Supplier Device Package	TO-78-6
