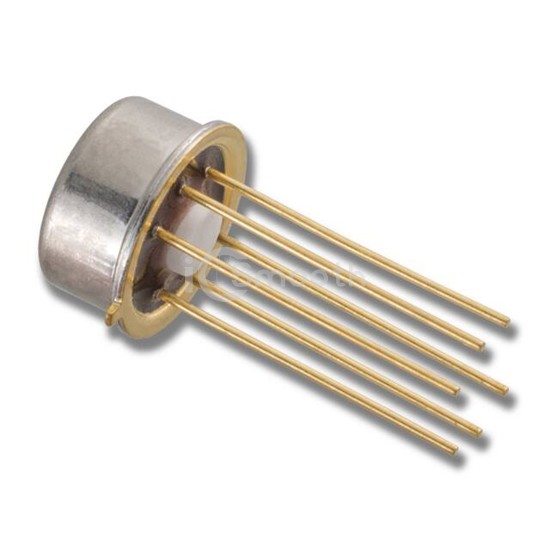

Name: IT120A TO-78 6L
Brand: Linear Integrated Systems, Inc.
SKU: IT120A TO-78 6L
Price: 7.88 USD
Availability: InStock

REF: IT120A TO-78 6L Linear Integrated Systems, Inc.

IT120A TO-78 6L

Linear Integrated Systems, Inc.

TIGHTLY MATCHED, MONOLITHIC DUAL

IT120A TO-78 6L is a Transistors - Bipolar (BJT) - Arrays manufactured by Linear Integrated Systems, Inc.. TIGHTLY MATCHED, MONOLITHIC DUAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-78-6 Metal Can, current - collector (ic) (max) 10mA.

Datasheet Request a Quote

In Stock: 90

Specifications

13 parameters

Product Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	10mA
Voltage - Collector Emitter Breakdown (Max)	45V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50µA, 500µA
Current - Collector Cutoff (Max)	1nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	225 @ 1mA, 5V

Power - Max	500mW
Frequency - Transition	220MHz
Operating Temperature	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-78-6 Metal Can
Supplier Device Package	TO-78-6
