LF 306-S

In Stock: 3,743

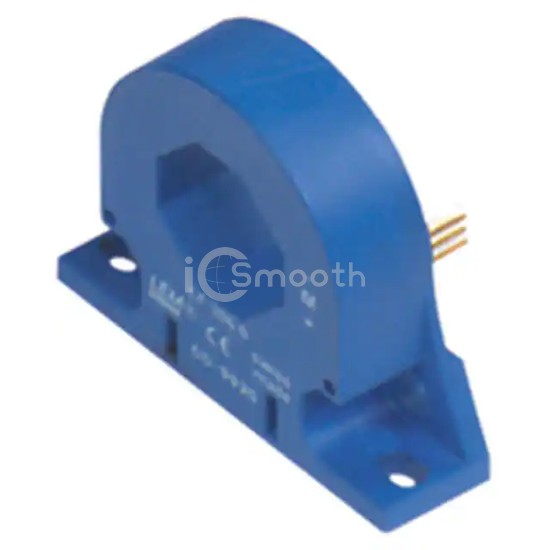

LF 306-S - LEM USA Inc. - Current Sensors
REF: LF 306-S LEM USA Inc.
LF 306-S

LEM USA Inc.

SENSOR CURRENT HALL 300A AC/DC

LF 306-S is a Current Sensors manufactured by LEM USA Inc.. SENSOR CURRENT HALL 300A AC/DC. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C, voltage - supply ±12V ~ 15V, package / case Module.

Datasheet Request a Quote

In Stock: 3,743

Tiered Pricing USD
1+ $91.3700 —
5+ $84.6800 -7%
10+ $82.1990 -10%
25+ $79.2412 -13%
60+ $76.7213 -16%
120+ $74.9158 -18% BEST

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect, Closed Loop
Current - Sensing300A
Number of Channels1
OutputRatiometric, Current
Sensitivity-
FrequencyDC ~ 100kHz
Linearity±0.1%
Accuracy±0.4%
Voltage - Supply±12V ~ 15V
Response Time1µs
Current - Supply (Max)170mA
Operating Temperature-25°C ~ 70°C
PolarizationBidirectional
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device Package-
