LF 1005-S/SP21

In Stock: 4,160

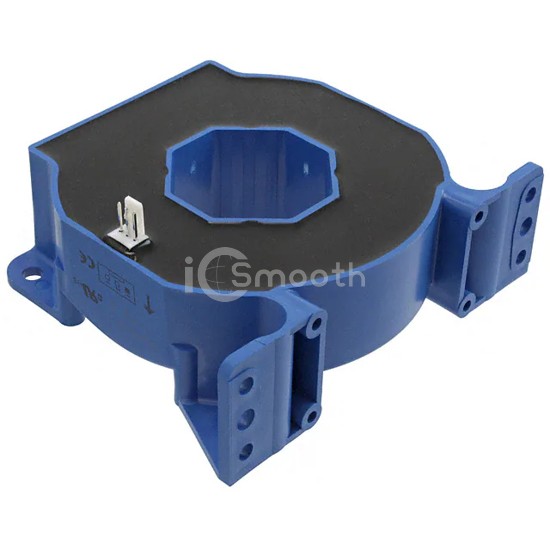

LF 1005-S/SP21 - LEM USA Inc. - Current Sensors
REF: LF 1005-S/SP21 LEM USA Inc.
LF 1005-S/SP21

LEM USA Inc.

SENSOR CURRENT HALL 1000A AC/DC

LF 1005-S/SP21 is a Current Sensors manufactured by LEM USA Inc.. SENSOR CURRENT HALL 1000A AC/DC. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - supply ±15V ~ 24V, package / case Module.

Datasheet Request a Quote

In Stock: 4,160

Tiered Pricing USD
1+ $253.8200 —
5+ $237.7980 -6%
18+ $227.2000 -10%
36+ $222.1422 -12% BEST

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect, Closed Loop
Current - Sensing1000A
Number of Channels1
OutputRatiometric, Current
Sensitivity-
FrequencyDC ~ 150kHz
Linearity±0.1%
Accuracy±0.4%
Voltage - Supply±15V ~ 24V
Response Time1µs
Current - Supply (Max)228mA
Operating Temperature-40°C ~ 85°C
PolarizationBidirectional
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device Package-
