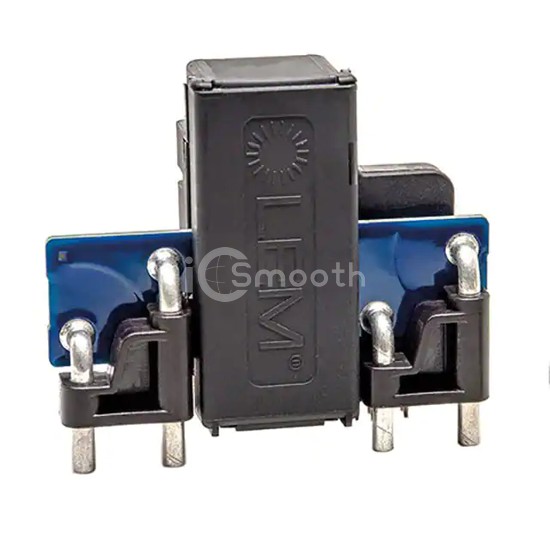

LDSR 0.3-TP/SP1

In Stock: 35
LDSR 0.3-TP/SP1 - LEM USA Inc. - Current Sensors
REF: LDSR 0.3-TP/SP1 LEM USA Inc.
LDSR 0.3-TP/SP1

LEM USA Inc.

1 PHASE LEAKAGE CURRENT DETECTIO

LDSR 0.3-TP/SP1 is a Current Sensors manufactured by LEM USA Inc.. 1 PHASE LEAKAGE CURRENT DETECTIO. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (TA), voltage - supply 4.75V ~ 5.25V, package / case Module.

Datasheet Request a Quote

In Stock: 35

Tiered Pricing USD
1+ $31.1700 —
5+ $28.5200 -9%
10+ $27.5410 -12%
25+ $26.3764 -15%
60+ $25.3853 -19%
120+ $24.6761 -21% BEST

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect, Closed Loop
Current - Sensing300mA
Number of Channels1
OutputRatiometric, Voltage
Sensitivity2.2V/A
FrequencyDC ~ 2kHz
Linearity±3%
Accuracy-
Voltage - Supply4.75V ~ 5.25V
Response Time300µs
Current - Supply (Max)20.5mA
Operating Temperature-40°C ~ 105°C (TA)
PolarizationBidirectional
Mounting TypeThrough Hole
Package / CaseModule
Supplier Device Package-
