HLSR 20-SM/SP33

In Stock: 3,192

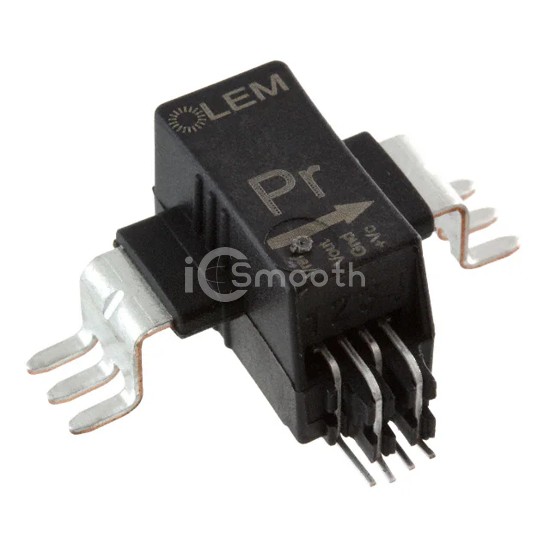

HLSR 20-SM/SP33 - LEM USA Inc. - Current Sensors
REF: HLSR 20-SM/SP33 LEM USA Inc.
HLSR 20-SM/SP33

LEM USA Inc.

SENSOR CURRENT HALL 20A AC/DC

HLSR 20-SM/SP33 is a Current Sensors manufactured by LEM USA Inc.. SENSOR CURRENT HALL 20A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 3.3V, package / case Module.

Datasheet Request a Quote

In Stock: 3,192

Tiered Pricing USD
1+ $9.7000 —
5+ $8.7380 -10%
10+ $8.3860 -14%
25+ $7.9672 -18%
50+ $7.6826 -21%
400+ $6.9678 -28%
800+ $6.7692 -30%
1,200+ $6.6609 -31% BEST

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing20A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity23mV/A
Frequency400kHz
Linearity±0.5%
Accuracy±1%
Voltage - Supply3.3V
Response Time2.5µs
Current - Supply (Max)25mA
Operating Temperature-40°C ~ 105°C
PolarizationBidirectional
Mounting TypeSurface Mount
Package / CaseModule
Supplier Device Package-
