Name: GHS 10-SME
Brand: LEM USA Inc.
SKU: GHS 10-SME
Price: 2.35 USD
Availability: InStock

REF: GHS 10-SME LEM USA Inc.

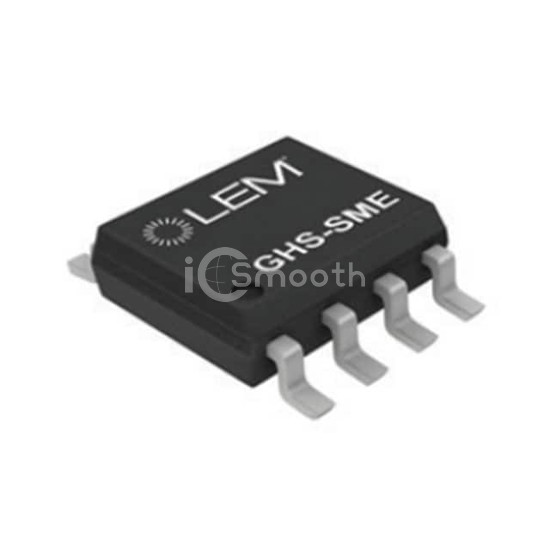

GHS 10-SME

INTEGRATED PRIMARY 10A O/L

GHS 10-SME is a Current Sensors manufactured by LEM USA Inc.. INTEGRATED PRIMARY 10A O/L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,883

Specifications

18 parameters

Product Status	Obsolete
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	10A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	80mV/A
Frequency	DC ~ 100kHz
Linearity	±0.25%

Accuracy	±1.25%
Voltage - Supply	4.5V ~ 5.5V
Response Time	-
Current - Supply (Max)	14mA
Operating Temperature	-40°C ~ 125°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
