Name: FG-R05-3A
Brand: KEMET
SKU: FG-R05-3A
Price: 41.37 USD
Availability: InStock

REF: FG-R05-3A KEMET

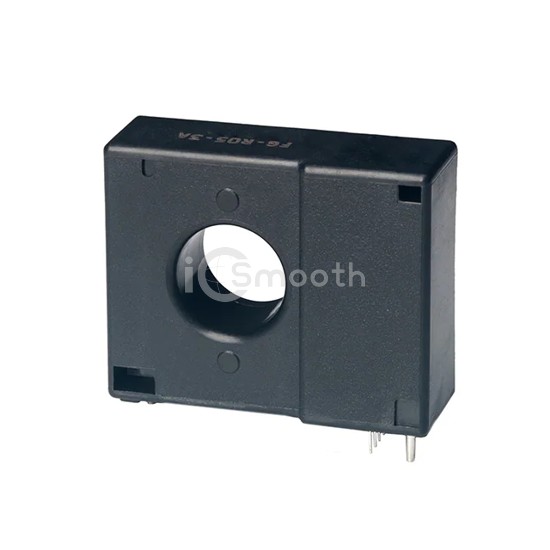

FG-R05-3A

FLUX GATE TYPE RESIDUAL CURRENT

FG-R05-3A is a Current Sensors manufactured by KEMET. FLUX GATE TYPE RESIDUAL CURRENT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 4.75V ~ 5.25V, package / case Module, Single Pass Through.

Datasheet Request a Quote

In Stock: 614

Tiered Pricing USD

1+ $41.3700 —

5+ $38.0640 -8%

10+ $36.8340 -11%

30+ $35.0877 -15%

60+ $34.1027 -18%

120+ $33.1985 -20% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Flux Gate, Open Loop
Current - Sensing	50mA
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	40V/A
Frequency	55Hz
Linearity	-

Accuracy	-
Voltage - Supply	4.75V ~ 5.25V
Response Time	250ms (AC), 1s (DC)
Current - Supply (Max)	13mA (Typ)
Operating Temperature	-40°C ~ 85°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	Module, Single Pass Through
Supplier Device Package	-
