Name: RS6334XP
Brand: Runic Technology
SKU: RS6334XP
Price: 0.60 USD
Availability: InStock

REF: RS6334XP Runic Technology

RS6334XP

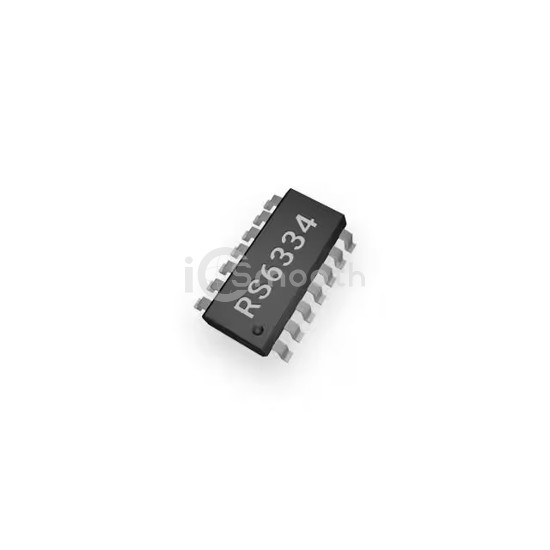

IC CMOS 4 CIRCUIT 14SOIC

RS6334XP is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Runic Technology. IC CMOS 4 CIRCUIT 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.154", 3.90mm Width), current - supply 58µA (x4 Channels).

Datasheet Request a Quote

In Stock: 4,000

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	4
Output Type	Rail-to-Rail
Slew Rate	0.5V/µs
Gain Bandwidth Product	1.1 MHz
-3db Bandwidth	-
Current - Input Bias	1 pA
Voltage - Input Offset	1.5 mV

Current - Supply	58µA (x4 Channels)
Current - Output / Channel	55 mA
Voltage - Supply Span (Min)	2.5 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
