Name: SV6050RA2TP
Brand: IXYS
SKU: SV6050RA2TP
Price: 7.08 USD
Availability: InStock

REF: SV6050RA2TP IXYS

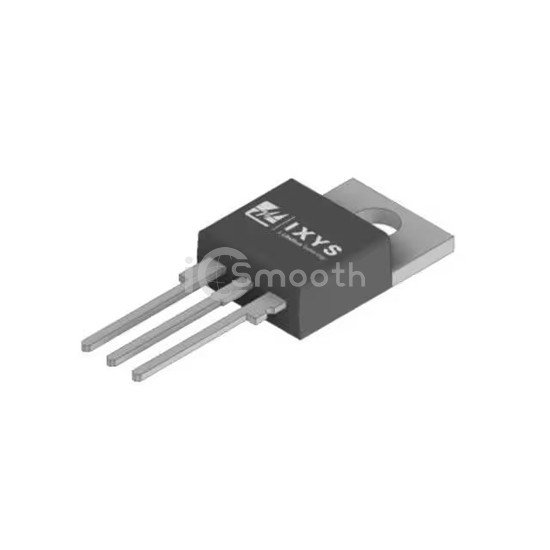

SV6050RA2TP

AEC-Q GRADE 50 AMP STANDARD HIGH

SV6050RA2TP is a Thyristors - SCRs manufactured by IXYS. AEC-Q GRADE 50 AMP STANDARD HIGH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 5,416

Tiered Pricing USD

1+ $7.0800 —

10+ $4.8210 -32%

100+ $3.6130 -49% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	15 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	31.5 A
Current - On State (It (RMS)) (Max)	50 A
Current - Hold (Ih) (Max)	50 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	456A, 550A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
