Name: N1467NC260
Brand: IXYS
SKU: N1467NC260
Price: 204.26 USD
Availability: InStock

REF: N1467NC260 IXYS

N1467NC260

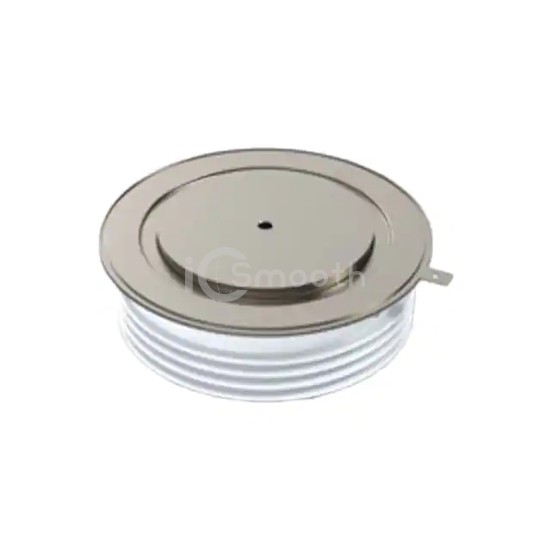

SCR 2.6KV 2912A W11

N1467NC260 is a Thyristors - SCRs manufactured by IXYS. SCR 2.6KV 2912A W11. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case TO-200AC, K-PUK.

Request a Quote

In Stock: 59

Specifications

15 parameters

Product Status	Active
Voltage - Off State	2.6 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	300 mA
Voltage - On State (Vtm) (Max)	1.69 V
Current - On State (It (AV)) (Max)	1467 A
Current - On State (It (RMS)) (Max)	2912 A
Current - Hold (Ih) (Max)	1 A

Current - Off State (Max)	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	23.6A @ 50Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	TO-200AC, K-PUK
Supplier Device Package	W11
