IXYN140N120A4

In Stock: 66

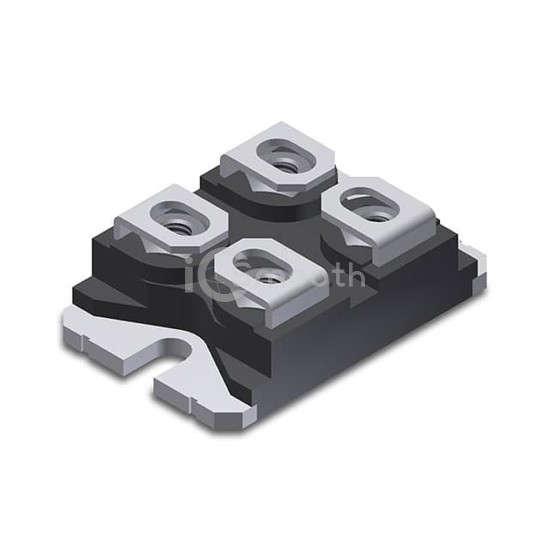

IXYN140N120A4 - IXYS - Transistors - IGBTs - Modules
REF: IXYN140N120A4 IXYS
IXYN140N120A4

IXYS

IGBT 140A 1200V SOT227B MINIBLOC

IXYN140N120A4 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT 140A 1200V SOT227B MINIBLOC. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 380 A.

Datasheet Request a Quote

In Stock: 66

Specifications

15 parameters
Product StatusActive
IGBT TypePT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)380 A
Power - Max1070 W
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 140A
Current - Collector Cutoff (Max)25 µA
Input Capacitance (Cies) @ Vce8.3 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
