IXYN110N120C4

In Stock: 3,803

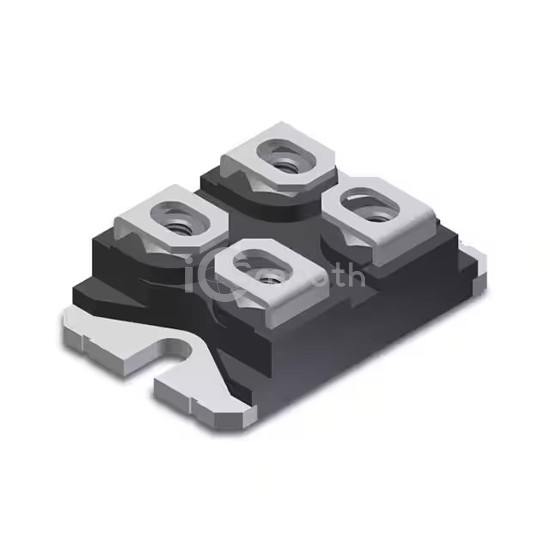

IXYN110N120C4 - IXYS - Transistors - IGBTs - Modules
REF: IXYN110N120C4 IXYS
IXYN110N120C4

IXYS

IGBT 1200V 110A GEN4 XPT SOT227B

IXYN110N120C4 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT 1200V 110A GEN4 XPT SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 220 A.

Datasheet Request a Quote

In Stock: 3,803

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)220 A
Power - Max830 W
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 110A
Current - Collector Cutoff (Max)50 µA
Input Capacitance (Cies) @ Vce5.42 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227
