IXSN55N120A

In Stock: 1,430

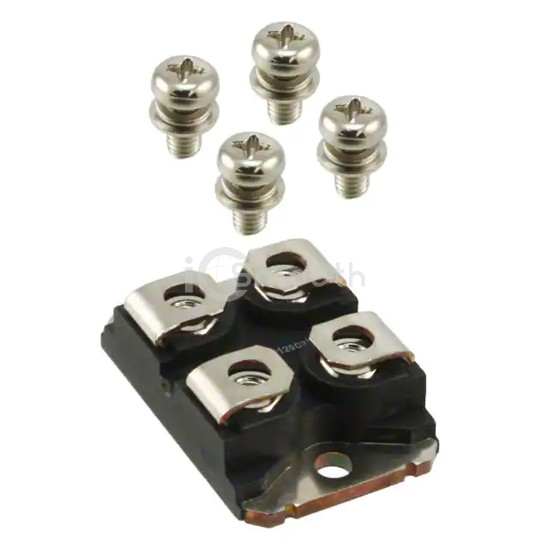

IXSN55N120A - IXYS - Transistors - IGBTs - Modules
REF: IXSN55N120A IXYS
IXSN55N120A

IXYS

IGBT MOD 1200V 110A 500W SOT227B

IXSN55N120A is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 1200V 110A 500W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 110 A.

Datasheet Request a Quote

In Stock: 1,430

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)110 A
Power - Max500 W
Vce(on) (Max) @ Vge, Ic4V @ 15V, 55A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce8 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
