IXSN52N60AU1

In Stock: 7,252

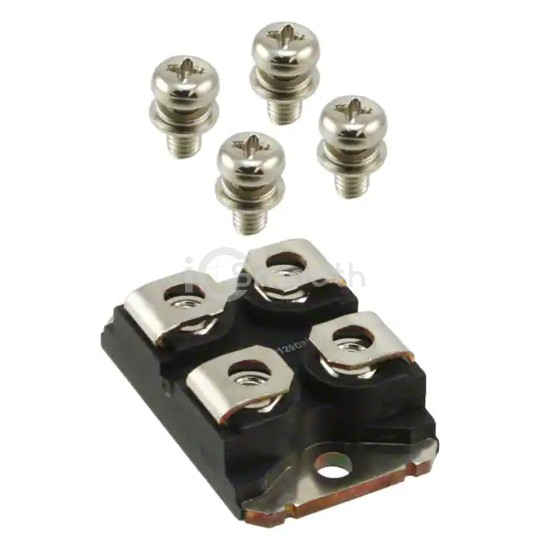

IXSN52N60AU1 - IXYS - Transistors - IGBTs - Modules
REF: IXSN52N60AU1 IXYS
IXSN52N60AU1

IXYS

IGBT MOD 600V 80A 250W SOT227B

IXSN52N60AU1 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 600V 80A 250W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 7,252

Specifications

15 parameters
Product StatusObsolete
IGBT TypePT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Power - Max250 W
Vce(on) (Max) @ Vge, Ic3V @ 15V, 40A
Current - Collector Cutoff (Max)750 µA
Input Capacitance (Cies) @ Vce4.5 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
