IXSN50N60BD2

In Stock: 3,406

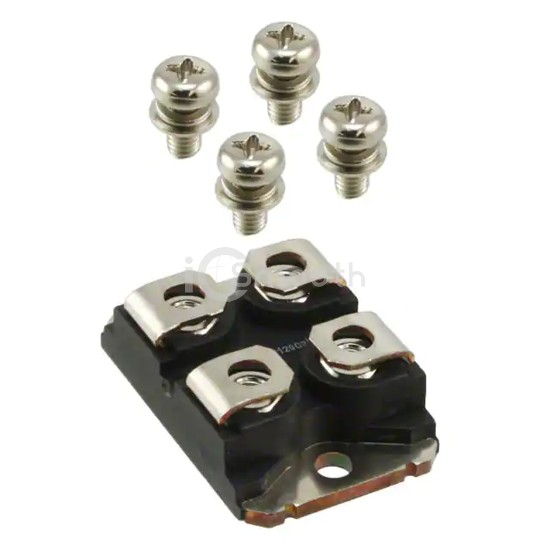

IXSN50N60BD2 - IXYS - Transistors - IGBTs - Modules
REF: IXSN50N60BD2 IXYS
IXSN50N60BD2

IXYS

IGBT MOD 600V 75A 250W SOT227B

IXSN50N60BD2 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 600V 75A 250W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 3,406

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)75 A
Power - Max250 W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 50A
Current - Collector Cutoff (Max)350 µA
Input Capacitance (Cies) @ Vce3.85 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
